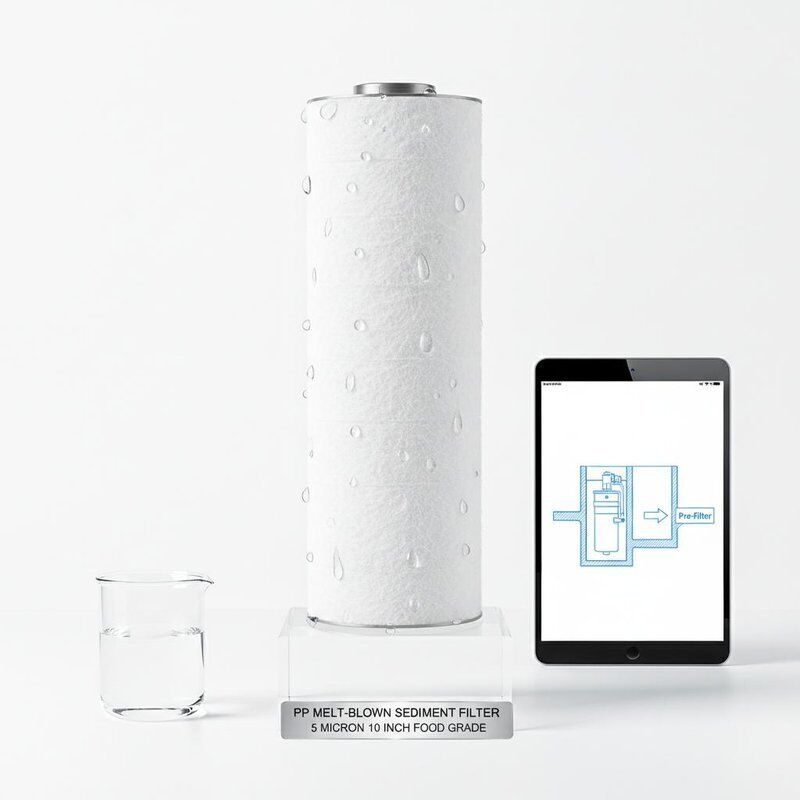

PP Melt-Blown Sediment Filter Cartridge 5 Micron 10 Inch Standard Size Food Grade Polypropylene RO Pre-Filtration
Dettagli:
| Luogo di origine: | Guangdong, Cina |
| Marca: | Fenigal/OEM |
| Certificazione: | FDA, NSF 42, ISO 9001:2015 |
| Numero di modello: | PP-SF10-5M |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 100 pezzi |
|---|---|
| Prezzo: | USD 0.5-1.5 / Piece |
| Imballaggi particolari: | Busta singola sigillata in PE, cartone da 25 pezzi/export, pallettizzata con pellicola termoretraibi |
| Tempi di consegna: | 3-5 giorni lavorativi per stock, 10-15 giorni per produzione |
| Termini di pagamento: | T/T, L/C, Western Union, PayPal |
| Capacità di alimentazione: | 100000 pezzi al mese |
|
Informazioni dettagliate |
|||
| Tipo di filtro: | Cartuccia per sedimenti soffiati a fusione | Filtro multimediale: | 100% polipropilene (PP) |
|---|---|---|---|
| Indice di filtrazione: | 5 micron assoluti | Lunghezza della cartuccia: | 10 pollici (254 mm) |
| Diametro esterno: | 63 mm (2,5 pollici) | Portata massima: | 20 l/min (5,3 GPM) |
| Temperatura massima: | 60°C (140°F) | Configurazione di fine: | Doppia estremità aperta (DOE) |
| Evidenziare: | PP melt-blown sediment filter cartridge,5 micron RO pre-filtration,10 inch food grade polypropylene filter |
||
Descrizione di prodotto
PP Melt-Blown Sediment Filter Cartridge 5 Micron
Our 5 micron melt-blown polypropylene sediment filter cartridge in 10 inch standard size is manufactured from 100% food grade polypropylene using advanced melt-blown technology. The gradient density structure provides progressive depth filtration with high dirt holding capacity, effectively removing sand, rust, silt, and suspended particles from water.
Key Features
- 5 micron absolute filtration rating for fine particle removal
- 10 inch standard size compatible with common filter housings
- 100% food grade polypropylene without binders or adhesives
- Gradient density depth filtration for longer service life
- High dirt holding capacity reducing replacement frequency
- Resistant to bacteria and chemical growth
- Wide chemical compatibility for diverse water sources
- NSF certified material for potable water safety
Technical Specifications
| Parameter | Specification |
|---|---|
| Filter Media | 100% Polypropylene (PP) Melt-Blown |
| Filtration Rating | 5 Micron (Absolute) |
| Cartridge Length | 10 inch (254mm) |
| Outer Diameter | 63mm (2.5") |
| Inner Diameter | 28mm (1.1") |
| Maximum Flow Rate | 20 L/min (5.3 GPM) |
| Maximum Operating Pressure | 4 bar (58 psi) |
| Maximum Operating Temperature | 60°C (140°F) |
| End Cap Configuration | Double Open End (DOE) |
| Material Certification | FDA, NSF 42 Compliant |
Applications
- RO system pre-filtration protection
- Whole house point-of-entry water filtration
- Commercial beverage and food processing
- Industrial cooling tower make-up water
- Car wash water recycling systems
- Swimming pool and spa filtration
- Agricultural drip irrigation pre-treatment
Packaged individually in sealed PE bag, 25 pieces per export carton. Custom micron ratings (1, 5, 10, 20, 50 micron) and sizes available. OEM private labeling with custom branding offered.
