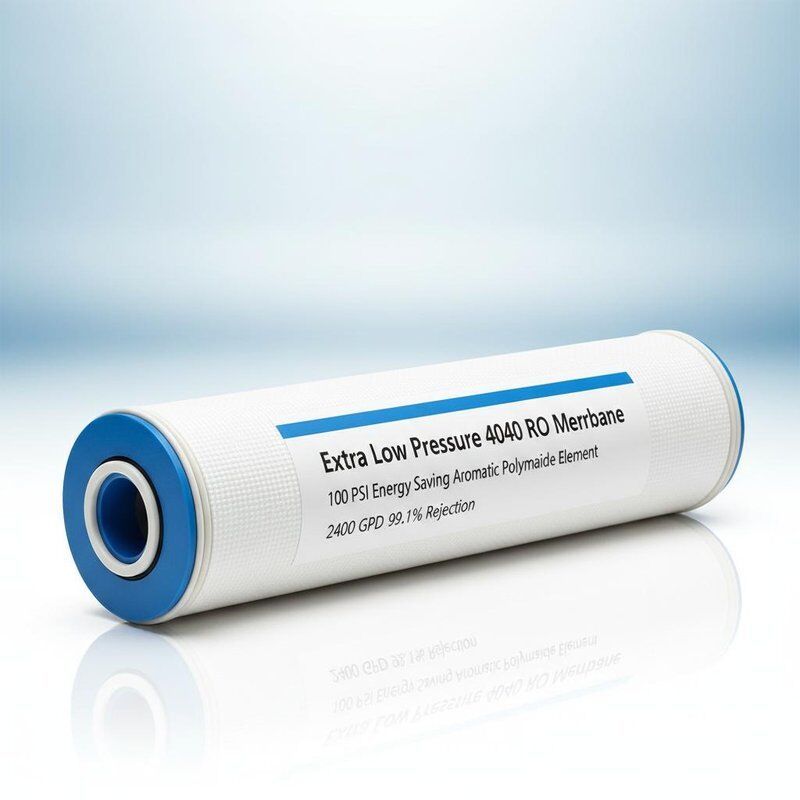

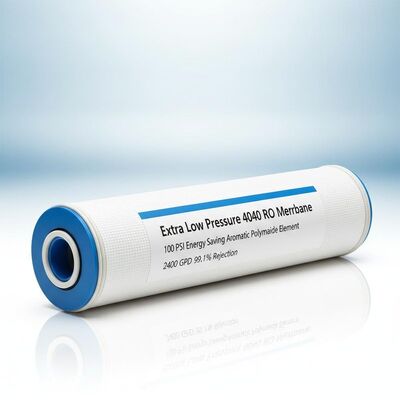

Extra Low Pressure 4040 RO Membrane with 2400 GPD Output and Aromatic Polyamide TFC Technology
Dettagli:
| Luogo di origine: | Guangdong, Cina |
| Marca: | FILTERPRO |
| Certificazione: | ISO 9001:2015 |
| Numero di modello: | FP-4040-XLP |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pezzo |
|---|---|
| Prezzo: | USD 65-120 / Piece |
| Imballaggi particolari: | Confezione sottovuoto in cartone individuale con soluzione conservante |
| Tempi di consegna: | 3-5 giorni lavorativi per stock, 10-15 giorni per produzione |
| Termini di pagamento: | T/T, L/C, PayPal, Western Union |
| Capacità di alimentazione: | 10000 pezzi al mese |
|
Informazioni dettagliate |
|||
| Dimensione dell'elemento della membrana: | 4040 (4 pollici x 40 pollici) | Area della membrana attiva: | 85 piedi² (7,9 m²) |
|---|---|---|---|
| Tasso di permeabilità: | 2400 GPD (9,1 m³/giorno) | Tasso stabile di rifiuto del sale: | 99,1% |
| Pressione operativa: | 100 psi (6,9 bar) | Materiale della membrana: | Poliammide aromatica TFC |
| Tipo di membrana: | Pressione estremamente bassa (XLP) | Tds dell'acqua di alimentazione: | ≤ 1500 ppm |
| Intervallo di pH: | 2-11 | ||
| Evidenziare: | Extra Low Pressure RO,100 PSI Energy Saving,2400 GPD Aromatic Polyamide |
||
Descrizione di prodotto
Extra Low Pressure 4040 RO Membrane 100 PSI Energy Saving Aromatic Polyamide Element 2400 GPD 99.1% Rejection
Extra Low Pressure 4040 RO Membrane - Energy Saving Brackish Water Element
The FP-4040-XLP is a cutting-edge extra low pressure reverse osmosis membrane element designed for maximum energy efficiency. Operating at just 100 PSI (6.9 bar) — significantly lower than standard 150-225 PSI membranes — this 4040 element achieves a 30-50% reduction in pump energy consumption while delivering 2400 GPD of high-quality permeate water.
Key Features
- Ultra-Low Operating Pressure: Rated at only 100 PSI, this XLP membrane dramatically reduces electricity costs in continuous operation, making it the most economical choice for brackish water treatment systems running 24/7.
- Aromatic Polyamide TFC Technology: Advanced thin-film composite membrane with aromatic polyamide active layer provides superior salt rejection (99.1%) at low pressure while maintaining excellent chlorine tolerance.
- 2400 GPD High Output: Despite the low pressure operation, achieves an industry-leading 2400 GPD permeate flow rate, comparable to standard 150 PSI membranes in the same 4040 form factor.
- Standard 4040 Format: Compatible with all standard 4-inch membrane pressure vessels, enabling seamless retrofit into existing RO systems without hardware modification.
- Extended Membrane Life: Low pressure operation reduces mechanical stress on the membrane surface, minimizing compaction and extending service life beyond conventional membranes.
Technical Specifications
| Parameter | Value |
|---|---|
| Membrane Element Size | 4040 (4" x 40") |
| Active Membrane Area | 85 ft² (7.9 m²) |
| Permeate Flow Rate | 2,400 GPD (9.1 m³/day) |
| Stable Salt Rejection | 99.1% |
| Operating Pressure | 100 PSI (6.9 bar) |
| Max Operating Pressure | 300 PSI (20.7 bar) |
| Membrane Material | Aromatic Polyamide TFC |
| Feed Water TDS | ≤ 1,500 ppm |
| pH Range (Continuous) | 2-11 |
| Max Feed Temperature | 45°C (113°F) |
| Free Chlorine Tolerance | < 0.1 ppm |
Applications
Perfect for small to medium commercial and industrial RO systems where energy costs are a primary concern: hotel and resort water purification, bottled water production, food and beverage processing, pharmaceutical water pretreatment, and community-scale drinking water systems.
Energy Savings Calculation
Compared to a standard 150 PSI membrane, the FP-4040-XLP saves approximately 33% on pump energy. For a system running 8,760 hours per year with a 1.5 kW pump, this translates to an annual electricity saving of over 4,300 kWh — approximately USD 500-650 per year at typical industrial electricity rates.
