Ionpure CEDI LX-Z LXM10Z-5 Chemical-Free EDI Module
Dettagli:
| Luogo di origine: | Cina |
| Marca: | IONPURE |
| Certificazione: | CE |
| Model Number: | LXM10Z-5 |
| Documento: | fgwater-ionpure-lxz-ds.pdf |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 PC |
|---|---|
| Prezzo: | negoziabile |
| Imballaggi particolari: | Imballaggio di esportazione standard |
| Tempi di consegna: | 5- 8 giorni lavorativi |
| Termini di pagamento: | , T/t |
| Capacità di alimentazione: | 60000 unità al mese |
|
Informazioni dettagliate |
|||
| LXM10Z-5 Portata minima M3/HR (GPM): | 0.57 (2.5) | LXM10Z-5 Design Flow Rate m3/hr (gpm): | 1.1-1.65 (5.0-7.5) |
|---|---|---|---|
| Peso lxm10z-5i kg (libbre): | 78 (171) | Peso operatorio LXM10Z-5 KG (LBS): | 51 (113) |
| Recupero LXM10Z-5: | 90 ‰ 95% | Voltaggio di corrente continua: | 0-400V |
| Amperaggio CC: | 1.0-6.0 | Vantaggio: | Operazione priva di sostanze chimiche |
| Evidenziare: | Chemical-Free EDI Module,Ionpure CEDI LX-Z Module,LXM10Z-5 EDI Module |
||
Descrizione di prodotto

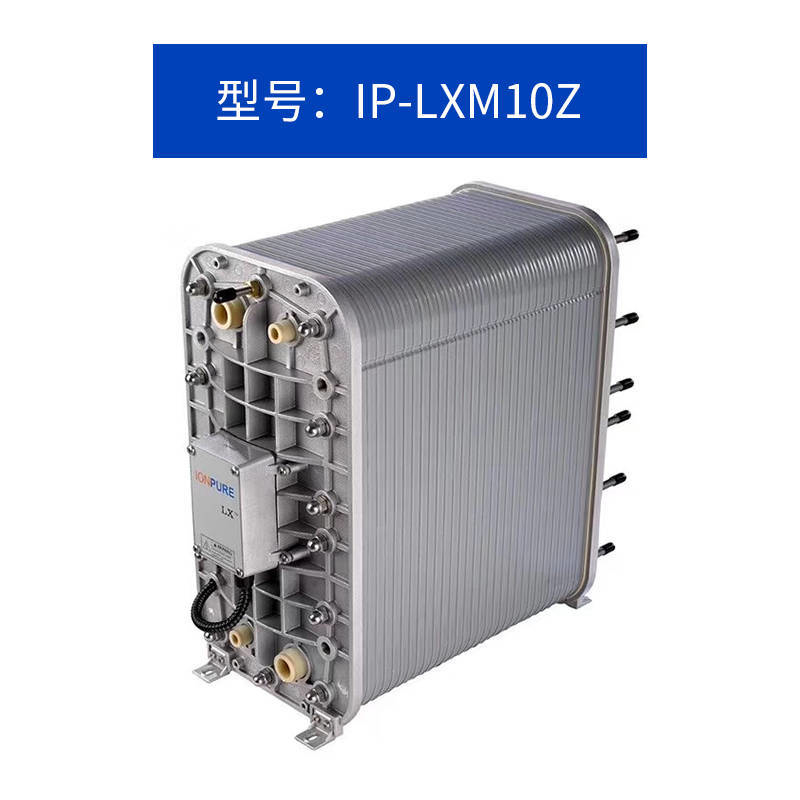

Ionpure CEDI LX-Z IP-LXM10Z-5 With Chemical-free Operation
Product Specifications
| LXM10Z-5 Minimum Flow Rate m3/hr (gpm) | 0.57 (2.5) |
| LXM10Z-5 Design Flow Rate m3/hr (gpm) | 1.1-1.65 (5.0-7.5) |
| LXM10Z-5I Weight kg (lbs) | 78 (171) |
| LXM10Z-5 Operating Weight kg (lbs) | 51 (113) |
| LXM10Z-5 Recovery | 90–95% |
| DC Voltage | 0-400V |
| DC Amperage | 1.0-6.0 |
| Advantage | Chemical-free Operation |
Core Technology
The Ionpure® LX-Z IP-LXM10Z-5 CEDI module delivers ultra-pure water through continuous electrodeionization, eliminating chemical regeneration. Designed for critical industrial applications, it produces water quality surpassing mixed-bed ion exchange while removing ionized and weakly charged impurities.
Key Advantages
- Zero Chemical Operation: Patented "fully filled" concentrate chamber design operates without salt additives or recirculation pumps, removing acid/caustic handling risks.
- Exceptional Reliability: Dual O-ring seals and robust construction ensure leak-free performance under high-temperature, high-pressure conditions.
- Sustainable Performance: Achieves industry-leading water recovery rates with minimal wastewater discharge and energy consumption.
Performance Excellence
- Produces high-resistivity water meeting stringent purity standards for advanced industries.
- Effectively removes silica, boron, and trace metals beyond conventional methods.
- Maintains stable output across variable feedwater conditions.
Industrial Applications
- Pharmaceutical: Validated for USP Purified Water and WFI pretreatment under cGMP.
- Semiconductor: Generates ultra-low silica water for wafer cleaning and precision processes.
- Power Generation: Ideal for high-pressure boiler feedwater systems.
Certifications & Support
Globally certified for safety and quality (CE, ISO, NSF, Halal). Supported by predictive performance modeling software and field service expertise.
Quality Assurance & Certification
- Rigorous Manufacturing: Each LX-Z module undergoes strict factory testing to ensure industry-leading performance standards.
- Certified Systems: Manufactured under ISO 9001 (Quality Management) and ISO 14000 (Environmental Management) certified systems.
- CE Mark Compliance: Modules carry the CE mark, signifying conformity with European health, safety, and environmental protection standards.
Operating Parameters
| Recovery | 90-95% |
| DC Voltage | 0-400 |
| DC Amperage | 1.0-6.0 |
Product Water Quality
| Product Resistivity | Minimum Flow > 17 MW-cm*† Maximum Flow > 7 MW-cm*† |
| Silica (SiO2) Removal | 90-99%, depending on feed conditions |
* Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.
*Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm), ensuring excellent deionization results in various application scenarios.
Feed Water Specifications
| Feed Water Conductivity Equivalent, including CO2 and Silica | < 40 μS/cm |
| Feed Water Source | RO permeate |
| Temperature | 5-45˚C (41-113˚F) |
| Inlet Pressure | 1.4-6.9 bar (20-100 psig) |
| Maximum Total Chlorine (as Cl2) | < 0.05 ppm |
| Iron (as Fe) | < 0.01 ppm |
| Manganese (as Mn) | < 0.01 ppm |
| Sulfide (S2-) | < 0.01 ppm |
| pH | 4-11 |
| Total Hardness (as CaCO3) | < 1.0 ppm |
| Dissolved Organics (TOC as C) | < 0.5 ppm |
| Silica (SiO2) | < 1.0 ppm |
Physical Specifications
| Item Number | L +/- 6.4 mm (0.25") | C +/- 3.2 mm (0.13") |
|---|---|---|
| LXM04Z | 257 mm (10.12") | 146.8 mm (5.78") |
| LXM10Z | 347.7 mm (13.69") | 235.7 mm (9.28") |
| LXM18Z | 488.2 mm (19.22") | 353.8 mm (13.93") |
| LXM24Z | 601.7 mm (23.69") | 442.7 mm (17.43") |
| LXM30Z | 696.5 mm (27.42") | 531.3 mm (20.92") |
| LXM45Z | 907.3 mm (35.72") | 747.7 mm (29.44") |
| LX8000Z | 1062 mm (41.81") | 888 mm (34.95") |
LX-Z Flow Range and Weights
| Ordering Part # | Model Number | Minimum Flow Rate m3/hr (gpm) | Design Flow Rate m3/hr (gpm) | Shipping Weight kg (lbs) | Operating Weight kg (lbs) |
|---|---|---|---|---|---|
| W3T17286 | IP-LXM04Z-5 | 0.22 (1.0) | 0.44-0.67 (2.0-3.0) | 59 (130) | 31 (69) |
| W3T17291 | IP-LXM10Z-5 | 0.57 (2.5) | 1.1-1.65 (5.0-7.5) | 78 (171) | 51 (113) |
| W3T17297 | IP-LXM18Z-5 | 1.02 (4.5) | 2.0-3.1 (9.0-13.5) | 99 (217) | 74 (163) |
| W3T17303 | IP-LXM24Z-5 | 1.36 (6.0) | 2.8-4.2 (12.5-18.8) | 115 (254) | 92 (103) |
| W3T17312 | IP-LXM30Z-5 | 1.70 (7.5) | 3.3-5.11 (15.0-22.5) | 132 (291) | 110 (243) |
| W3T17314 | IP-LXM45Z-5 | 2.57 (11.3) | 5.1-7.67 (22.5-33.8) | 205 (451) | 157 (345) |
| W3T584543 | IP-LX8000Z-5 | 3.13 (13.75) | 7.5 - 10 (33 - 44) | 225 (496) | 190 (419) |
