High-Efficiency DuPont XP 77 IG UF Membrane A Game-Changer for Water Treatment Industry
Dettagli:
| Luogo di origine: | Cina |
| Marca: | Dupont |
| Certificazione: | CE |
| Numero di modello: | Integratec ™ XP 77 IG (precedentemente SFP 2880XP) |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 PC |
|---|---|
| Prezzo: | negoziabile |
| Imballaggi particolari: | imballaggio di esportazione standard |
| Tempi di consegna: | 5-8 giorni di lavoro |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 60000 unità al mese |
|
Informazioni dettagliate |
|||
| XP 77 IG Area di membrana efficace:: | 8 pollici | XP 77 IG Flusso:: | 2,0–8,5 m³/ora (8,8–37,6 gpm) |
|---|---|---|---|
| XP 77 IG Max Feed Pressure:: | 6,25 bar (90,65 psi) a 20 ° C | Diametro nominale dei pori di XP 77 IG:: | 0,03 µm |
| Pressione massima del backwash:: | 2,5 bar (36 psi) | Max. TMP operativo di questo modulo:: | 2.1 bar |
| Flusso massimo di sgranatura dell'aria operativa di questo modulo:: | 12 nm3/ora | Naocl (max.) Di questo modulo:: | 2.000 mg/l |
| Certificazioni:: | ISO 9001, NSF, CE | Applicazione:: | Produzione di acqua pura |
| Vantaggi:: | Alta efficienza · Risparmio energetico | Evidenziare:: | Membrana DuPont XP 77 UF, membrana dell'acqua di risparmio energetico, membrana Dow uf per acqua |
Descrizione di prodotto

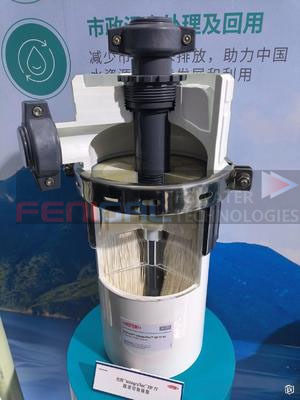

The DuPont XP 77 IG UF Membrane stands out as a high-efficiency, energy-saving solution tailored for the water treatment industry, revolutionizing pure water production with its advanced technology and reliable performance. As a flagship ultrafiltration (UF) product under DuPont, this membrane is engineered with cutting-edge PVDF hollow-fiber technology, ensuring exceptional fouling resistance and stable high-flux operation—key traits that address the critical needs of industrial water purification.
In terms of craft (process), the DuPont XP 77 IG UF Membrane adopts an outside-in, dead-end flow configuration, which enables it to tolerate feedwater with high suspended solids (up to 300 µm particle size) while maintaining consistent filtration efficiency. Its 0.03 µm nominal pore diameter effectively removes bacteria, viruses, colloids, and particulates, a crucial capability for meeting stringent water quality standards. The membrane also supports backwashing (max backwash pressure: 2.5 bar/36 psi) and air scour (max flow: 12 Nm³/hr), simplifying maintenance and extending its service life.
When it comes to用途 (applications), the DuPont XP 77 IG UF Membrane is ideal for high-demand sectors such as pharmaceutical manufacturing, microelectronics production, healthcare water systems, and beverage processing. It ensures compliance with industry standards like ISO 9001, NSF, and CE, making it a trusted choice for applications requiring pure, contaminant-free water.
Specifications Table of DuPont XP 77 IG UF Membrane
|
Attribute |
SI Units |
US Units |
|
Effective Membrane Area |
77 m² |
829 ft² |
|
Flow Rate |
2.0–8.5 m³/hr |
8.8–37.6 gpm |
|
Max Feed Pressure (20°C) |
6.25 bar |
90.65 psi |
|
Max Operating TMP |
2.1 bar |
30.5 psi |
|
Nominal Pore Diameter |
0.03 µm |
0.03 µm |
|
Operating Temperature |
1–40°C |
34–104°F |
|
Operating pH Range |
2–11 |
2–11 |
|
Max NaOCl Tolerance |
2,000 mg/L |
2,000 mg/L |
The DuPont XP 77 IG UF Membrane boasts distinct advantages that set it apart in the market. Its high-efficiency design delivers 35% higher permeability than previous-generation UF modules, while its energy-saving operation reduces operational costs by minimizing chemical usage and wastewater generation. The robust U-PVC housing eliminates the need for external pressure vessels, shrinking the system footprint and simplifying installation. Additionally, its innovative end-cap design streamlines piping, further enhancing usability for water treatment facilities. For businesses seeking a reliable, sustainable UF solution, the DuPont XP 77 IG UF Membrane is the ultimate choice to elevate pure water production efficiency.
