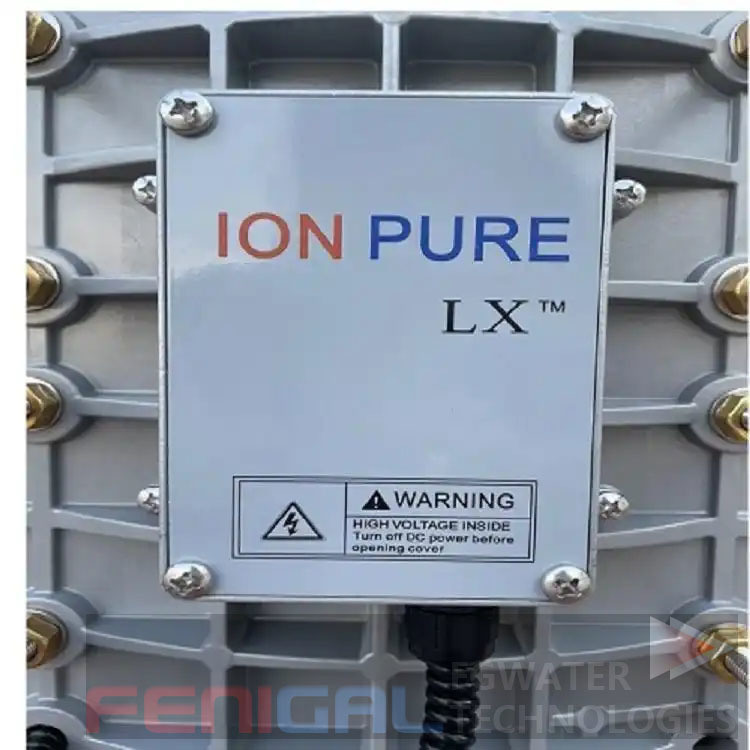

Ionpure CEDI LX-Z IP-LXM18Z-5 Advanced Continuous Electrodeionization Module for High-Purity Water
Dettagli:
| Luogo di origine: | Cina |
| Marca: | IONPURE |
| Certificazione: | CE |
| Numero di modello: | IP-LXM18Z-5 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 PC |
|---|---|
| Prezzo: | negoziabile |
| Imballaggi particolari: | imballaggio di esportazione standard |
| Tempi di consegna: | 5-8 giorni di lavoro |
| Capacità di alimentazione: | 60000 unità al mese |
|
Informazioni dettagliate |
|||
| Portata minima 18Z-5 M3/ora (GPM): | 1.02 (4.5) | Portata di progettazione 18Z-5 M3/HR (GPM): | 2.0-3.1 (9.0-13.5) |
|---|---|---|---|
| 18Z-5 Peso di spedizione Kg (libbre): | 99 (217) | 18Z-5 Peso operativo Kg (libbre): | 74 (163) |
| Recupero 18Z-5: | 90–95% | Vantaggi: | Flow high-flow, senza sostanze chimiche |
| Evidenziare: | Modulo Ionpure Cedi LX-Z, modulo EDI No Chemicals Ne è richiesto, IP-LXM18Z-5 Modulo di trattamento | ||
Descrizione di prodotto
Ionpure CEDI LX-Z IP-LXM18Z-5 is a cutting-edge continuous electrodeionization (CEDI) module designed for on-demand production of high-purity water. Engineered by industry leader Ionpure, this module integrates ion exchange resin with electrochemical technology, eliminating the need for chemical regeneration while delivering consistent, ultra-pure water output. Ideal for critical applications requiring low conductivity and minimal total organic carbon (TOC), Ionpure CEDI LX-Z IP-LXM18Z-5 stands out as a reliable, cost-effective solution for industrial water purification.
In terms of craftsmanship, the Ionpure CEDI LX-Z IP-LXM18Z-5 features a robust construction with a proprietary resin matrix and durable electrode plates. It incorporates advanced membrane technology that enhances ion migration efficiency, ensuring stable performance even under varying feed water conditions. The module undergoes strict quality control tests to meet ISO standards, with a focus on leak-proof design and long-term operational stability, reducing maintenance downtime for users.
When it comes to applications, Ionpure CEDI LX-Z IP-LXM18Z-5 excels in industries such as power generation (boiler feed water), pharmaceuticals (WFI production), electronics (semiconductor manufacturing), and laboratory research. It effectively removes dissolved ions, heavy metals, and impurities from pre-treated feed water, producing water with conductivity as low as 0.055 μS/cm and resistivity up to 18.2 MΩ·cm. It seamlessly integrates into existing water treatment systems, complementing reverse osmosis (RO) units for end-to-end purification.
Key Specifications Table
|
Specification Category |
Details |
|
Flow Rate |
Up to 5.0 m³/h (22 gpm) |
|
Feed Water Requirements |
RO permeate, conductivity ≤ 5 μS/cm, TOC ≤ 0.5 ppm |
|
Product Water Quality |
Resistivity ≥ 15 MΩ·cm, SiO₂ ≤ 5 ppb |
|
Operating Conditions |
Temperature: 5-45°C, pressure: 2.0-6.0 bar |
The advantages of Ionpure CEDI LX-Z IP-LXM18Z-5 are remarkable. It eliminates chemical regeneration costs and waste disposal, making it an eco-friendly choice. Its compact design saves installation space, while the automatic operation reduces labor requirements. With a service life of up to 5 years, it offers long-term value, and its consistent performance ensures compliance with strict industry purity standards, making it the preferred CEDI module for high-purity water applications.
