Ultra-Compact 10ft-Class 50 m³/day Reverse Osmosis Water System with Versatile Power Configuration
Dettagli:
| Luogo di origine: | Cina |
| Marca: | Fenigal/OEM |
| Certificazione: | CE/ISO 9001 |
| Numero di modello: | FRO-CMini-50 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 set |
|---|---|
| Prezzo: | negoziabile |
| Imballaggi particolari: | Container autonomo da 10 piedi/gabbia in legno |
| Tempi di consegna: | 30~45 giorni |
| Termini di pagamento: | T/T,L/C,Western Union |
| Capacità di alimentazione: | 20 messi al mese |
|
Informazioni dettagliate |
|||
| Tasso di permeabilità: | 50 m³/giorno (2,1 m³/h, 13.200 GPD) | Tasso di recupero: | 60~70% |
|---|---|---|---|
| Tds dell'acqua di alimentazione: | ≤ 2.000 ppm | Pressione operativa: | 8~14 bar |
| Consumo energetico: | 7,5 kW (380 V/50 Hz) | Dimensioni di recinzione: | 3.000 * 2.200 * 2.400 mm (circa) |
| Evidenziare: | 10ft Mini Containerized RO,Ultra Portable Water Treatment,50m3 Day Compact RO Plant |
||
Descrizione di prodotto
Compact 10ft Mini Containerized Reverse Osmosis Water System 50m³/Day Ultra Portable Plug & Play Remote
The FRO-CMini-50 redefines portable water treatment with an ultra-compact 50 m³/day (13,200 GPD) reverse osmosis system engineered into a footprint measuring just 3.0 meters in length. This makes it transportable on a standard flatbed trailer or pickup truck and deployable in locations where conventional 20ft or 40ft containerized systems cannot physically access.
Despite its compact dimensions, the system incorporates a complete treatment train with multimedia pre-filtration, activated carbon dechlorination, anti-scalant dosing, 5-micron cartridge security filtration, and twelve 4040 RO membrane elements configured for consistent high-quality permeate production from brackish groundwater or surface water sources up to 2,000 ppm TDS.
Designed specifically for remote community water supply, construction camp utilities, small-scale mining exploration, humanitarian emergency response, and eco-resort operations, the FRO-CMini-50 eliminates the logistical burden of oversized equipment while delivering industrial-grade water treatment performance in the most space-constrained environments.
Key Features
- Ultra-Compact 10ft-Class Footprint: External dimensions of approximately 3.0 m × 2.2 m × 2.4 m (L×W×H), occupying roughly one-quarter the deck space of conventional 20ft container systems. Enables transportation on standard 3.5-ton flatbed trailers without special permits and fits through standard commercial doorway openings.
- Versatile Power Configuration: Available in standard 380V 3-phase 50Hz, optional 220V single-phase for locations without industrial power infrastructure, and solar-hybrid ready configuration with integrated MPPT charge controller and battery bank interface for off-grid operation.
- Simplified Touchscreen Interface: 7-inch color touchscreen HMI with intuitive icon-based interface, one-touch startup/shutdown sequences, visual process flow diagram with real-time parameter display, and pre-configured alarm thresholds with plain-language troubleshooting guidance.

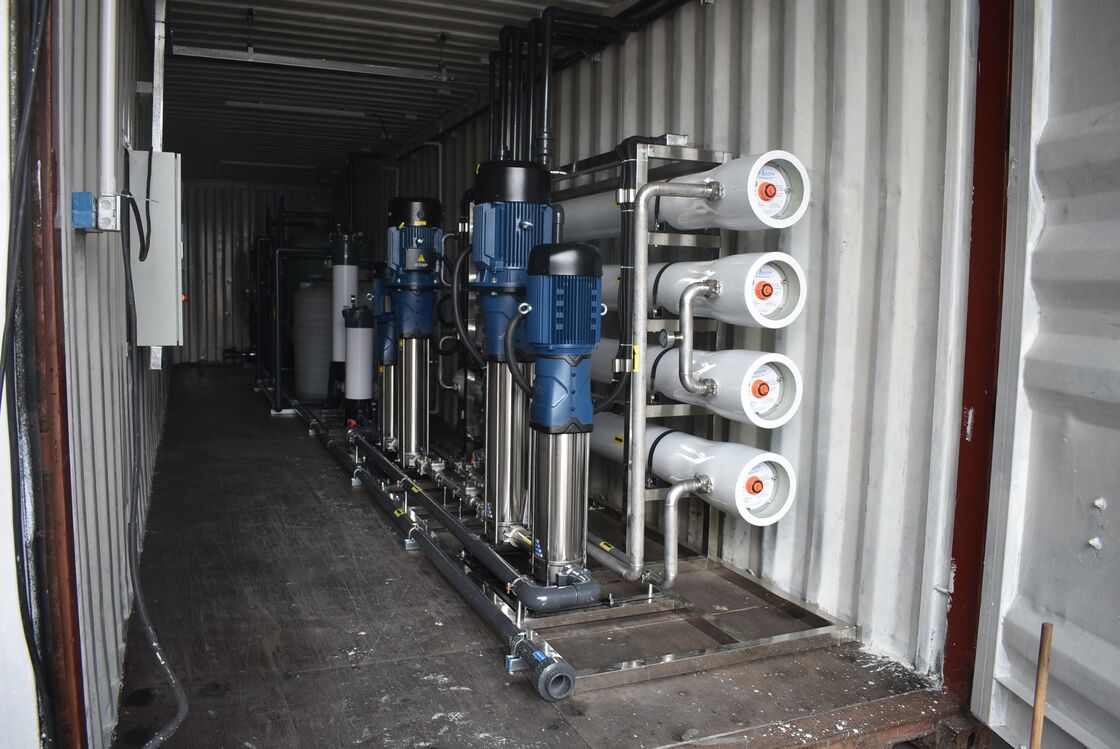

- Twelve High-Efficiency 4040 Membranes: Configured in space-optimized 3-stage array using low-pressure brackish water elements from DOW Filmtec or Vontron. Delivers 99% salt rejection with operating pressures from 8-14 bar and low energy consumption of approximately 7.5 kW at full capacity.
- Integrated Pre-Treatment in Single Enclosure: Combines fiberglass multimedia filter and activated carbon filter within the enclosure footprint. Features automatic time-based backwash controllers for consistent pre-treated water quality without manual intervention.
- Multiple Handling Options: Standard configuration includes integrated forklift pockets on all four sides and removable lifting lugs for crane handling. Optional galvanized trailer frame with highway-rated axle, lighting, and braking system converts unit into road-legal mobile water treatment trailer.
- Low-Noise Operation: Carefully selected CNP pump with TEFC motor operates under 65 dBA. Enclosure features 25mm acoustic insulation on internal wall panels, suitable for noise-sensitive environments like eco-resorts, residential areas, and wildlife conservation areas.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FRO-CMini-50 |
| Permeate Flow Rate | 50 m³/day (2.1 m³/h, 13,200 GPD) |
| Recovery Rate | 60~70% |
| Feed Water TDS | ≤ 2,000 ppm |
| Nominal Salt Rejection | ≥ 99.0% |
| Membrane Configuration | 12 × 4040 Elements, 3-Stage Array, FRP Housings |
| Operating Pressure | 8~14 bar |
| Power Consumption | 7.5 kW (380V/50Hz) |
| Enclosure Dimensions (L×W×H) | 3,000 × 2,200 × 2,400 mm (approx.) |
| Operating Weight | Approx. 2,800 kg |
| Power Supply Options | 380V 3PH / 220V 1PH / Solar Hybrid |
| Feed Water Temperature | 5~40°C |
| Noise Level at 1m | < 65 dBA |
| Mobility Features | Forklift Pockets, Lifting Lugs, Optional Trailer Mount |
| Control System | Microprocessor Controller + 7-inch Color Touchscreen HMI |
| Chemical Dosing | Anti-Scalant Dosing Pump with 50L Tank |
Applications
The FRO-CMini-50 is purpose-built for scenarios where large conventional containerized plants are impractical due to site access limitations, budget constraints, or power availability.
Primary applications include humanitarian emergency water supply delivered via light truck or helicopter to disaster-affected areas, remote indigenous community potable water systems where road access is limited to small vehicles, mining exploration camp water supply that must be relocated monthly, construction site temporary water treatment during infrastructure projects in challenging terrain, island resort and eco-lodge water production where barge delivery and small footprint are essential, forward operating base expeditionary water supply requiring helicopter-transportable equipment, and agricultural greenhouse irrigation water treatment for small to medium horticultural operations.
The optional solar-hybrid configuration enables completely off-grid operation in regions with abundant solar irradiation, reducing operational costs to near zero after initial capital investment. Multiple Mini-50 units can be deployed in a decentralized distributed water supply model for scattered communities rather than requiring expensive pipeline networks from a single centralized plant.
Packaging and Quality Assurance
Each FRO-CMini-50 system undergoes a comprehensive 24-hour factory wet test with full instrumentation verification, membrane integrity pressure testing, and automated sequence validation before shipment. The compact enclosure is designed for standard flat-rack or open-top container shipping, with all internal components secured for transport and chemical tanks emptied and purged.
An optional export-grade plywood crate with desiccant packs and corrosion-inhibiting VCI packaging is available for sea freight shipments to tropical destinations. Documentation includes simplified installation guide with pictographic instructions for non-English-proficient operators, electrical wiring diagram, P&ID schematic, and a quick-reference troubleshooting card mounted inside the enclosure door.
The standard 1-year warranty covers all components, with remote technical support available via video call for commissioning assistance at any global location.
