DHP 3.0 Axial Piston Pump - High-Pressure Water Treatment Consumables for Industrial Reverse Osmosis/Seawater Desalination

DHP 3.0 Axial Piston Pump - High-Pressure Water Treatment Consumables for Industrial Reverse Osmosis/Seawater Desalination

Dettagli:

Luogo di origine: Cina
Marca: Fenigal
Certificazione: CE
Numero di modello: DHP 3.0

Termini di pagamento e spedizione:

Quantità di ordine minimo: 1 PC
Prezzo: negoziabile
Imballaggi particolari: Imballaggio di esportazione standard
Capacità di alimentazione: 60000 unità al mese
Miglior prezzo Contatto

Informazioni dettagliate
Modello di prodotto: DHP 3.0 Spostamento geometrico: 17,7 cm³/rev
Flusso nominale a 3000 giri / min: 3,0 m³/h (equivalente a 50 L/min) Pressione minima di uscita: 20 bar
Pressione massima di uscita continua: 80 bar Pressione minima di ingresso: 1 bar
Pressione massima di ingresso continuo: 5 ANTIVARI
Evidenziare:

DHP 3.0 axial piston pump

,

high-pressure water treatment pump

,

industrial reverse osmosis pump

Descrizione di prodotto

As a key model in the DHP series, the DHP 3.0 Axial Piston Pump is a professional high-pressure Water Treatment Consumable, tailor-made for industrial reverse osmosis scenarios. It excels at conveying high-pressure, low-viscosity corrosive fluids—ideal for seawater desalination, industrial desalination, and industrial saline wastewater treatment, effectively handling media like seawater and brackish water.


Operating on the axial piston principle, the pump uses plungers (parallel to the drive shaft) reciprocating in plunger bores to change cavity volume and transfer fluid. Unlike traditional piston pumps, it uses the conveyed fluid as lubrication, eliminating the need for a lubricating oil tank. This not only simplifies the structure but also completely avoids oil leakage pollution, perfectly meeting the strict cleanliness requirements of desalination systems. Additionally, it boasts a compact design (lighter and smaller than peers with the same flow/pressure) and high operating efficiency, cutting long-term energy costs for users.


Key components are made of 2205 duplex stainless steel, ensuring strong corrosion resistance to high-salinity media. It runs with low noise (≤77 dB(A) per EN ISO 3744-2010) and stable performance. As a fixed-displacement pump, its flow rate is strictly proportional to speed at 80 Bar working pressure: at the rated 3000 rpm, flow reaches 3.0 m³/h (50 L/min); at 1500 rpm, it’s about 1.5 m³/h. For custom needs, use the formula Selected Motor Speed = (Required Flow Rate × 3000)/3.0—e.g., 2.2 m³/h requires ~2200 rpm, enabling precise flow matching.


To ensure safe and stable operation, follow strict installation and operation guidelines:


  • Installation: Clearly distinguish "I" (inlet) and "O" (outlet) to avoid reverse-connection damage; keep 3-5 mm clearance between pump and motor coupling (no axial/radial loads on the pump shaft).
  • Filtration: Install a 10 μm absolute filter (≥99.98% efficiency, β10>5000) at the inlet—avoid low-efficiency filters to prevent plunger wear from particles.
  • Pressure Protection: Add a 1 Bar low-pressure switch (prevents dry running) at the inlet, and a 70 Bar high-pressure switch + safety valve at the outlet (avoids membrane/pipeline overpressure damage).
  • Shutdown Flushing: Flush the cavity with fresh water after each shutdown (bactericide for >15-day shutdowns) to prevent salt crystallization; never start with the downstream valve closed.


Power varies by pressure: 7.5 kW at 60-70 Bar, 11 kW at 80 Bar (recommended for seawater desalination, which operates at 70-80 Bar). The pump comes with a 1-year basic warranty (covers quality issues, excludes man-made damage) and an 8000-hour maintenance-free warranty (max 18 months) under standard use. WUXI FENIGAL SCIENCE AND TECHNOLOGY CO., LTD. provides on-site diagnosis, maintenance, and spare parts to ensure uninterrupted water treatment operations.

Core Technical Parameters of DHP 3.0

Parameter Category Specific Value
Product Model DHP 3.0
Geometric Displacement 17.7 cm³/rev
Rated Flow (3000 rpm) 3.0 m³/h (50 L/min)
Minimum Outlet Pressure 20 Bar
Maximum Continuous Outlet Pressure 80 Bar
Minimum/Maximum Inlet Pressure 1 Bar / 5 Bar
Continuous Operating Speed Range 700～3450 rpm
Operating Noise (EN ISO 3744-2010) ≤77 dB(A)
Power (3000 rpm) 7.5 kW (60/70 Bar), 11 kW (80 Bar)
Medium Temperature 2～50 ℃ (depends on NaCl concentration)
Ambient Temperature 0～50 ℃
Overall Weight 7.8 kg
Integrated Component Flushing Check Valve
Core Application Seawater desalination, industrial wastewater desalination/resource recovery

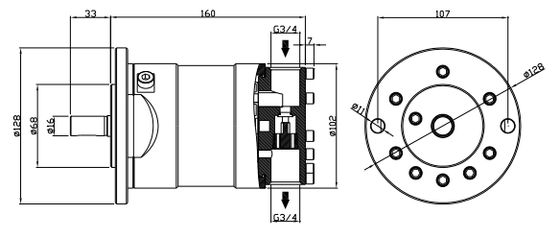

Inlet & Outlet Dimensions of DHP 3.0

Pump Model Inlet Size Outlet Size
DHP 3.0 G3/4〞, Depth 18 mm G3/4〞, Depth 18 mm

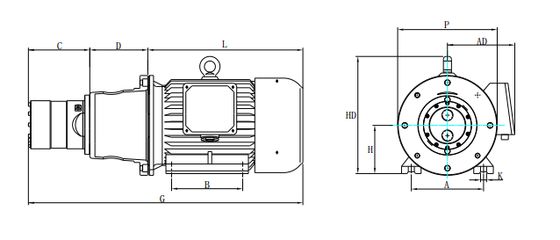

Overall Dimensions of DHP 3.0 (Unit: mm)

Pump Model A B H K P AD HD Matching IEC Motor
DHP 3.0 216 140 132 12 300 220 350 7.5 kW - 2P
DHP 3.0 254 210 160 12 350 260 420 11 kW - 2P
