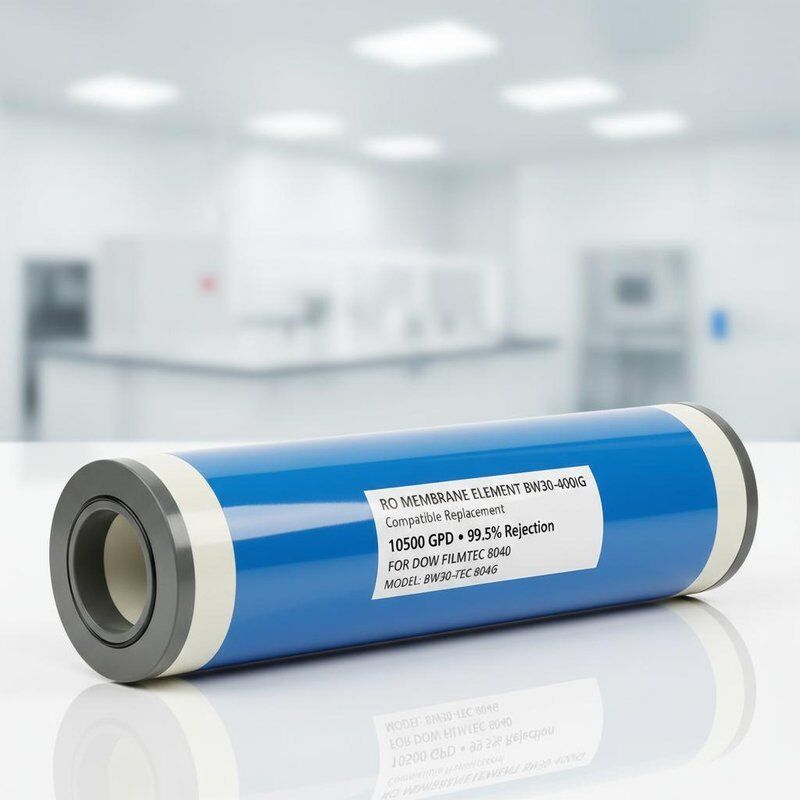

BW30-400IG Compatible RO Membrane Element 8040 OEM Replacement with 10500 GPD Flow and 99.5% Rejection Polyamide Thin-Film Composite
Dettagli:
| Luogo di origine: | Guangdong, Cina |
| Marca: | FILTERPRO |
| Certificazione: | ISO 9001:2015 |
| Numero di modello: | BW30-400IG-C |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pezzo |
|---|---|
| Prezzo: | USD 180-280 / Piece |
| Imballaggi particolari: | Confezione singola sottovuoto in cartone per esportazione con essiccante, pallet disponibile |
| Tempi di consegna: | 3-5 giorni lavorativi per stock, 15-20 giorni per produzione |
| Termini di pagamento: | T/T, L/C, PayPal, Western Union |
| Capacità di alimentazione: | 5000 pezzi al mese |
|
Informazioni dettagliate |
|||
| Dimensione dell'elemento della membrana: | 8040 (8 pollici x 40 pollici) | Area della membrana attiva: | 400 piedi² (37 m²) |
|---|---|---|---|
| Tasso di permeabilità: | 10500 GPD (39,7 m³/giorno) | Tasso stabile di rifiuto del sale: | 99,5% |
| Pressione operativa: | 225 PSI (15,5 bar) | Materiale della membrana: | Composito a film sottile di poliammide |
| Compatibile con: | DOW FILMTEC BW30-400IG | Tds dell'acqua di alimentazione: | ≤ 2000 ppm |
| Intervallo di pH: | 2-11 | ||
| Evidenziare: | OEM Compatible RO Replacement,DOW FILMTEC BW30 Alternative,8040 Brackish Water Membrane |
||
Descrizione di prodotto
BW30-400IG Compatible RO Membrane Element 8040 OEM Replacement for DOW FILMTEC 10500 GPD 99.5% Rejection
Product Overview
The FILTERPRO BW30-400IG-C is a high-performance OEM compatible reverse osmosis membrane element engineered as a direct drop-in replacement for DOW FILMTEC BW30-400IG. It delivers consistent, reliable brackish water desalination at a competitive price point, making it the ideal choice for system operators seeking to reduce maintenance costs without compromising water quality.
Key Features
- Direct OEM Compatibility: Designed to the same form factor and performance specifications as the original DOW FILMTEC BW30-400IG, ensuring seamless integration into existing 8040 membrane housings and RO skids.
- High Permeate Flow: Produces up to 10,500 GPD (39.7 m³/day) of purified water under standard test conditions, meeting the demands of medium to large-scale industrial RO plants.
- Stable Salt Rejection: Achieves and maintains 99.5% salt rejection over the membrane's service life, ensuring consistent product water quality.
- Industrial-Grade Construction: Polyamide thin-film composite (TFC) membrane with fiberglass outer wrap for mechanical strength and durability in demanding operating environments.
- Cost-Effective Alternative: Delivers comparable performance to branded OEM membranes at 30-50% lower cost, reducing total cost of ownership for water treatment facilities.
Technical Specifications
| Parameter | Value |
|---|---|
| Membrane Element Size | 8040 (8" x 40") |
| Active Membrane Area | 400 ft² (37 m²) |
| Permeate Flow Rate | 10,500 GPD (39.7 m³/day) |
| Stable Salt Rejection | 99.5% |
| Operating Pressure | 225 PSI (15.5 bar) |
| Membrane Material | Polyamide Thin-Film Composite |
| Feed Water TDS | ≤ 2,000 ppm |
| pH Range (Operating) | 2-11 |
| Max Operating Temperature | 45°C (113°F) |
| Free Chlorine Tolerance | < 0.1 ppm |
Applications
- Industrial brackish water reverse osmosis systems
- Power generation facilities
- Food and beverage processing
- Pharmaceutical manufacturing
- Municipal drinking water treatment
Compatible with all standard 8040 membrane pressure vessels.
Packaging and Warranty
Each membrane element is vacuum sealed in a heavy-duty polyethylene bag with food-grade preservative solution, packed in an export-grade corrugated carton, and includes a desiccant pouch. Standard warranty: 12 months from date of shipment under normal operating conditions.
